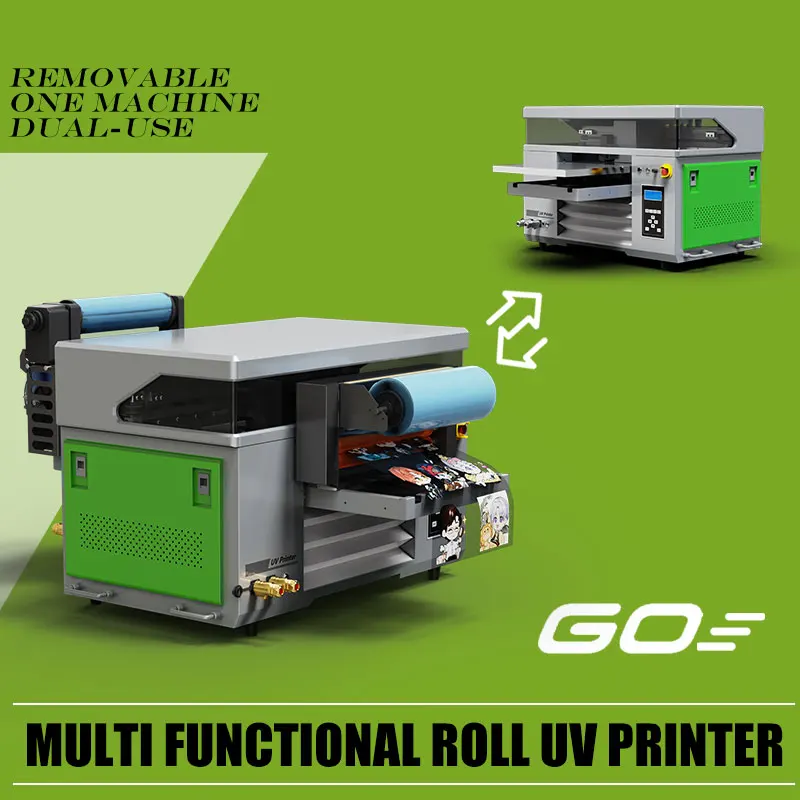

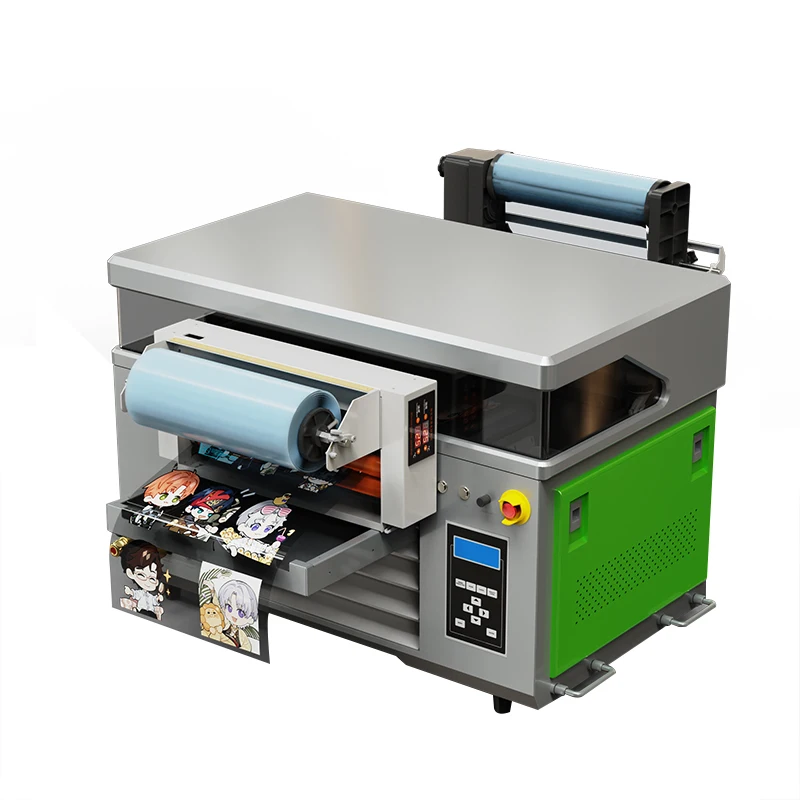

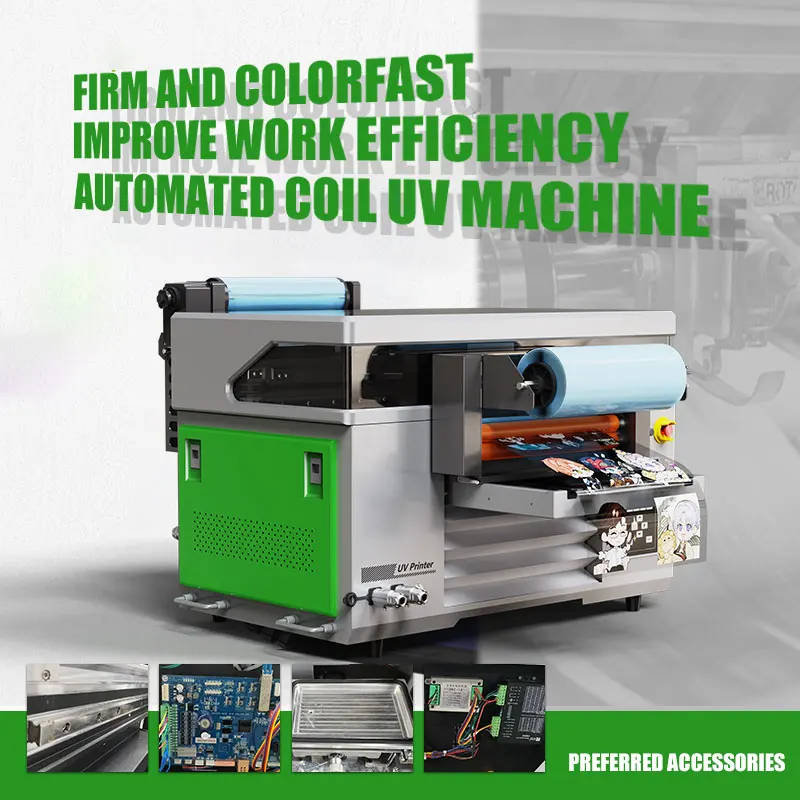

mini uv dtf printer small flatbed mug aluminum can bottle photo sticker roll-to-roll film-coated crystal label ironing machine
Description
Brand:sonpuu |
Method:fully automatic ink supply |
|
Model:4060 coil flat UV integrated machine |

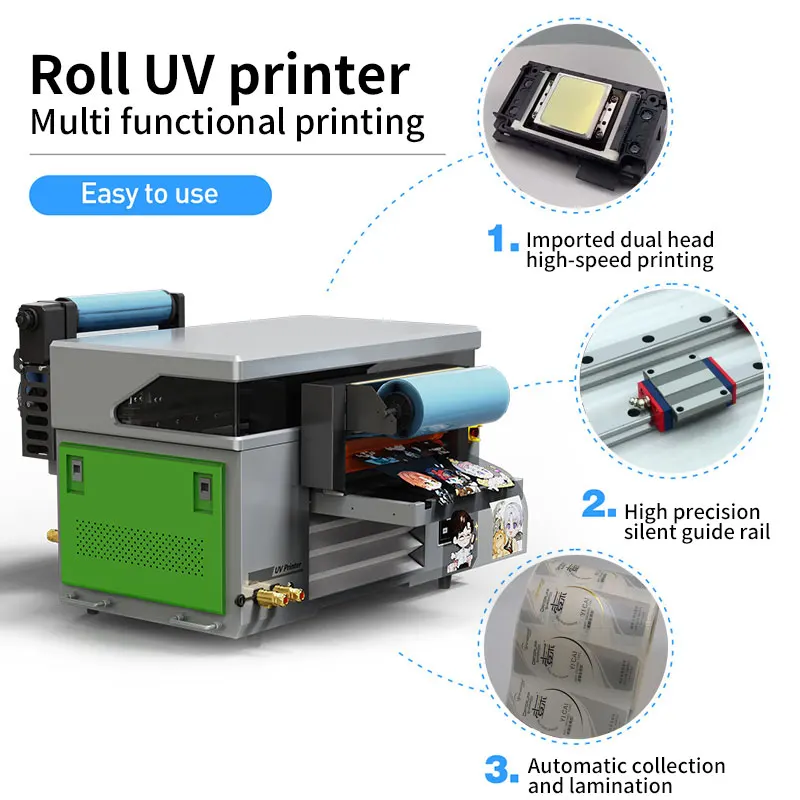

print head :Epson dedicated print head |
|
Curing system:Long life LED uv lamp ink |
Scraping method:Lift sype,more stable |
|
Control motherboard:Independently developed board |
Software:Professional output software |
|
Printing heighe:18cm |
Cylinder system:supports cylinder printing |
|
Ink stack unit :aluminum alloy CNC precision machining |
Weight:about90kg |
|
Ink level monitoring :automatic monitoring,alarm,non-stop inking |
||
printing task:Supports pausing and resuming printing,queue task |
||
Image format:jgp/png,psdepspdf etc |
Ink heating:optional |
|
Ink cartridge:Original secondary ink cartridge system |
Printing direction:bidirectional printing |
|
Feature design:automatic fitm covering,film tearing |
||
Gold and silver stamping crystal sticker support |
||
Power system:servo motor |
||
printing size:38cm*Depends on the length of the coil |
||
Spray head protection:white ink cieculation mixing+timed flash spraying |
||
printing accuracy:720/1280*2880*5670dpi images can be printed |
||
printing colour Ccyan/M magenta/Y yellow/black/W white |
||
printing technology:Mrcro voltage,on-demand inkjet with ink droplets as small as 3.5pl |
||
Environment:temperature 10-35°c,humidity 20-80% power:AC220/110+10.60Hz |
||
printing speed:8pass,1/3 faster than peers(slightly different in color,format,and precision |
||
Equipment accessory:a set of ink,printing software,typesetting software,drawing software, encryption power cord, data cable Spare ink bag, spare screws cleaning syringe,waste ink bottle, instruction manual(electronic version) |
||

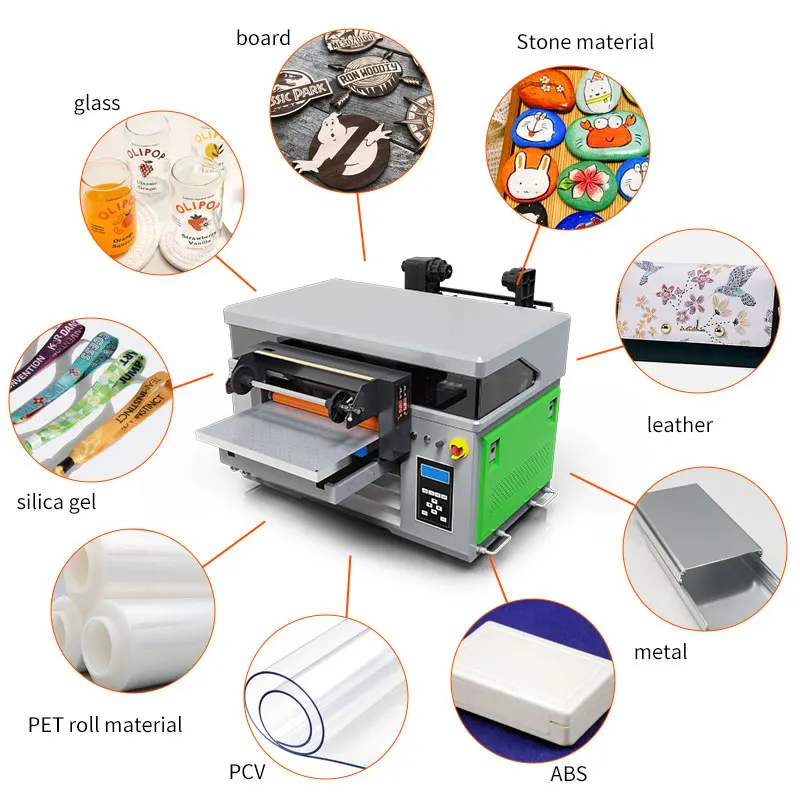

Applicable material:coil crystal label,tin foil paper,pet film wooden board,glass,crystal,pvc,abs, acrylic metal plastic,stone,leather,cloth,and other materials. |
||
