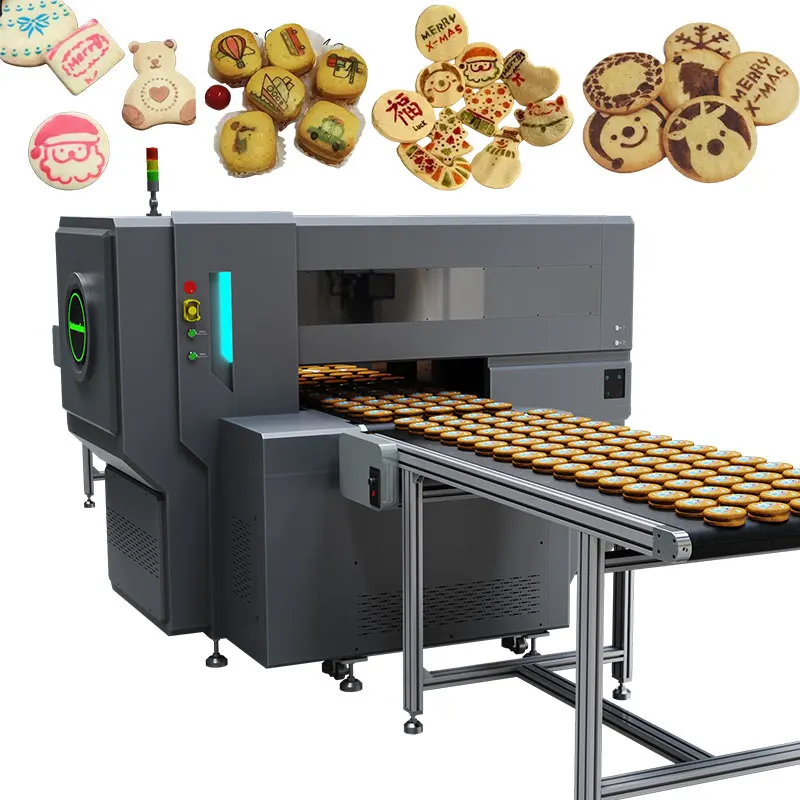

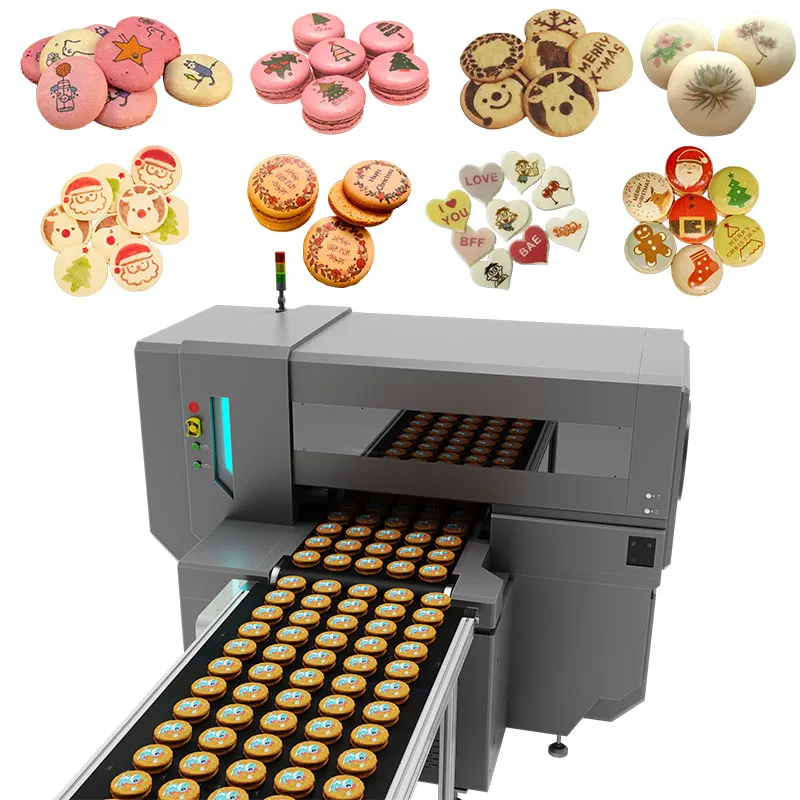

food printer i3200 industrial grade large assembly line flat cake bread chocolate biscuit candy diy creative printing machine

Pipeline UV Printer

Product Name：	CCD visualAutomatic'assemblylinevisionUV painting machine	Model：	X600	Print head：	13200/G6（supportscustomization）
Print height:	150mm	Print Size:	Width 60cm(length not limited)	Number ofprint heads:	1~6
Print colors:	CMYK+W+V	Control motherboard:	Self developed	curing system:	LED UV light
Dynamical system:	Double servo motorson the x and y axes	Eye protection:	UV shield	Height adjust:	hand movement
Cleaning system:	Automatic/manualcleaning	Anti blocking:	Wnite spk shrring	Ink quantitymonitoring:	Real time/ink shortage alarm
Special effects:	Gloss/Relief	Inkjet technology:	Micro pressure ink dropletvariable technology	Position system:	Visual positioning
Curing time:	Beat and dryimmediately	Transmission mode:	Motor+guide rail	Output software:	Ruiyin/Montai

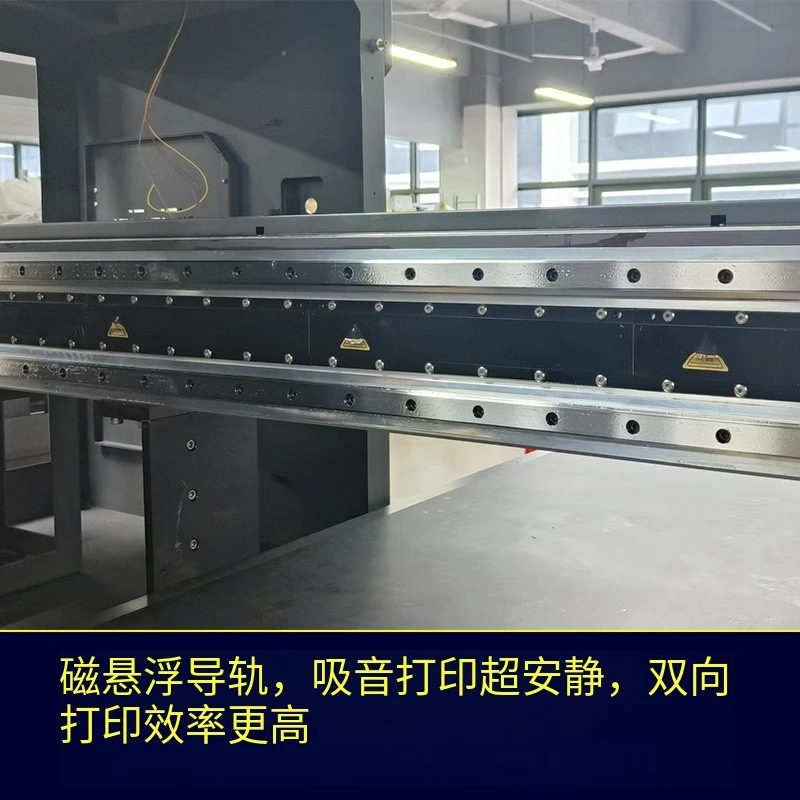

FAN:	1.5Kw turbine fan	Independentpower supply:	Mingwei Power Box	RAIL:	Magnetic levitationguide rail
INK:	UV/water-based ink	Interface:	Gigabit fiber optic	Equipment size:	2386mm2200mm1913mm
