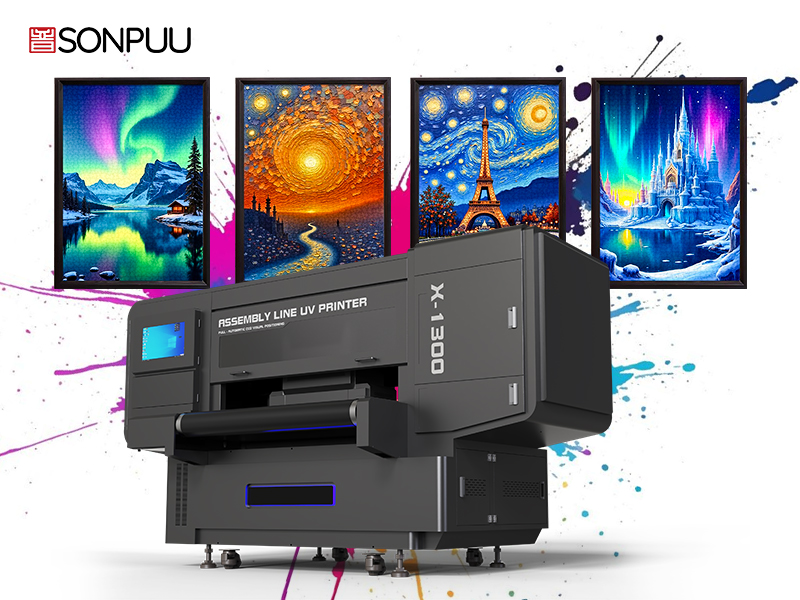

Printing on 5cm Thick Materials with UV Flatbed Printer Clarity

UV Flatbed Printer Capabilities for 5cm Thick Materials

Understanding Maximum Print Height and Head Clearance in UV Flatbed Printers

UV flatbed printers today can handle pretty thick materials, sometimes as much as 5 centimeters, thanks to how they manage the space between the print head and whatever surface needs printing. This gap matters because it has to accommodate not just how thick the material is but also where those tiny ink droplets go flying and what happens during the curing process. Most machines built for these thicker substrates keep something like a 2 to 5 millimeter buffer zone. That extra room helps avoid any nasty collisions between the printer head and the material itself while still letting the ink stick properly. According to Print Technology Review from last year, this approach works really well across different applications.

Adjustable Print Height Mechanisms Enabling Printing on Materials Up to 5cm Thickness

Z-axis elevation systems come in various forms, letting operators either lift the print bed itself or bring down the printer head instead. The heavier duty UV flatbed printers typically feature motorized lifting systems that can manage loads well beyond 25 kilograms worth of material. A recent look at industry trends from last year showed something interesting too. Most manufacturers seem to care more about having sufficient vertical adjustment range than they do about top printing speeds, especially when dealing with thicker substrates. About four out of five companies surveyed actually ranked this adjustability higher than raw speed performance metrics.

Use of Advanced Technologies Like Height Sensors and Automated Calibration

Infrared height mapping scanners create 3D topography profiles of substrates, automatically adjusting print paths for recessed or uneven surfaces. When paired with real-time UV lamp intensity modulation, these systems reduce ink pooling on dense materials by 34% compared to static setups (Material Science Printing Journal 2023).

Case Study: Successful 5cm Wood Panel Printing Using Dynamic Z-Axis Adjustment

A furniture manufacturer demonstrated full-color printing on 5cm oak panels using automated Z-axis calibration. The process achieved 98% ink coverage uniformity while maintaining production speeds of 12 panels/hour. Post-curing adhesion tests showed 4.7x greater scratch resistance than screen-printed equivalents (Woodworking Technology Report 2023).

Material Compatibility and Challenges in Thick-Substrate UV Printing

Substrate Versatility in UV Flatbed Printing: Wood, Acrylic, Metal, and More

Today's UV flatbed printers work with all sorts of stuff, including natural wood that can be as thick as 5 cm, plus acrylics, metals that have been anodized, and even ceramics. They do this because their print heads stay super accurate at around 25 microns even when printing on bumpy or irregular surfaces. These special UV inks stick right onto materials that absorb ink, like oak wood, and also on smooth ones such as brushed aluminum, no need for any special preparation first. According to research from the Print Quality Consortium back in 2023, metal printed with UV technology actually stands up to scratches about 38 percent better than what we get with regular solvent based prints. That makes these printers really good choices for things like labels used in factories where durability matters most.

Printing Directly on Acoustic Panels Without Priming: A Real-World Application

Recent advances have made it possible to do direct UV printing right onto those sound absorbing acoustic panels that used to be a nightmare for printers because of their rough textures and mineral wool makeup. The trick? Manufacturers are pairing 600 dpi print heads with adjustable Z-axis systems that let them lay down complex designs on these thick 5cm panels without needing any primer first. Take one recent stadium installation as an example they managed to hit 92% color accuracy across all 2,500 panels straight out of the box, which cut down production time by almost two thirds when compared to old school screen printing methods. This kind of breakthrough is changing how we think about decorative acoustic solutions in large spaces.

Challenges in Printing on Irregular and Thick Substrates

Despite their capabilities, UV flatbed printers face four key challenges with thick and irregular substrates:

1. Surface Irregularities: A 2024 Technical Association report linked 22% of defects on textured concrete panels to inconsistent nozzle-to-substrate distances.
2. Thermal Dynamics: Thick acrylic sheets (>3cm) require recalibration to offset 0.12mm/cm thermal expansion during UV curing.
3. Edge Distortion: 5cm-thick wood substrates can warp up to 1.2mm during multi-layer printing, requiring real-time laser compensation.
4. Ink Penetration: Dense hardwoods limit UV ink penetration to 0.3mm, demanding specialized curing protocols to prevent delamination (PQC Standards, 2023).

Operators address these issues using automated height-mapping systems that scan substrates at 400 points/second and adjust curing parameters within 0.8ms intervals.

Achieving Print Quality and Clarity on Dense Materials with UV-Cured Inks

How Print Quality and Clarity Are Maintained on Dense Materials

The UV flatbed printers produce really clear prints on thick materials thanks to their precision print heads which keep droplet sizes between about 7 to 12 picoliters. These machines have special systems for controlling ink thickness that adjust based on how porous the material is, which helps keep those crisp edges intact even on tricky surfaces such as MDF boards or composite stones. Recent tests from last year showed these printers can achieve stable resolutions of around 1,440 dpi on materials as dense as 2.8 grams per cubic centimeter when they use those smart ink placement techniques we've been talking about.

UV Curing Efficiency on Dense Materials and Its Impact on Finish Durability

When using instantaneous UV curing, the chemical bonds formed are roughly 40% stronger compared to regular drying techniques. This makes all the difference when working with thicker materials that tend to retain heat. The dual stage LED UV lamps operating at around 385 and 395 nanometer wavelengths get most of the ink polymerized about 98% within just two seconds on standard 5 centimeter wide surfaces. What this does is stop the ink from seeping too deep into those tight fiber structures. As a result, we end up with really tough surface finishes that can withstand pencil hardness tests up to level 3H or even 4H according to ASTM D3363 standards. That kind of durability matters a lot in real world applications where wear resistance is critical.

High-Quality UV Printing with Improved Technology: Achieving Sharp Detail at Scale

The latest improvements in UV printing technology now offer around ±0.003mm positioning accuracy thanks to those laser guided substrate maps we've been talking about lately. What makes these printers really stand out is their multi channel print heads which can lay down both matte and glossy inks all in one go across the surface. We're seeing about 94% match with Pantone colors even when working on those tough dark composite surfaces that used to be a nightmare for color consistency. And don't forget the performance stats either these machines keep dot gain below 0.1mm while running at impressive speeds of up to 75 square meters per hour. This means they produce photo quality prints suitable not just for regular applications but also specialized ones like acoustic panels and various types of industrial flooring where both appearance and durability matter.

Overcoming Technical Challenges in Printing on Thick and Irregular Surfaces

Common Issues When Printing on Challenging Surfaces (Curved, Recessed, Hard-to-Print)

Printing on textured, curved, or recessed surfaces presents inherent difficulties. Misregistration, ink pooling, and uneven curing occur in 37% of attempts involving irregular substrates (Print Industry Report, 2023). Uneven surfaces disrupt optimal nozzle-to-substrate distances, while embossed wood or molded plastics create "dead zones" where UV light fails to cure ink uniformly.

Solutions for Print Bed Stabilization for Heavy Substrates

Securing heavy materials like 5cm stone composites requires engineered solutions:

• Vacuum beds generating 0.8–1.2 PSI suction to hold substrates up to 200 lbs
• Magnetic clamping systems for ferrous metals, minimizing lateral shifts during high-speed operation
• Adaptive jigs compensating for ±3mm warping, essential for architectural panel production

These systems reduce vibration-related defects by 62% compared to manual fixation methods.

Industry Paradox: Balancing Speed and Precision on Thick Substrates

According to research from 2024, there's roughly a 15 to maybe even 20 percent decrease in productivity when working with 5 centimeter thick substrates compared to thinner materials. The main reasons for this are longer curing periods needed and the extra work required to keep everything aligned properly. Fortunately, newer models of UV printers have started addressing these issues through what they call dual curing technology. These machines do partial LED curing while actually printing, then complete the process later with full post curing sessions. Plus, many now feature advanced servo driven systems for adjusting the Z axis, which helps maintain that critical plus or minus 0.1 millimeter gap between the printhead and substrate surface all while keeping printing speeds intact.

Technological Advancements Enhancing 5cm UV Flatbed Printing Performance

Integration of Real-Time Height Mapping and Adaptive Focus Systems

Height mapping systems powered by artificial intelligence can scan surfaces at an impressive rate of 45 times every single second. They adjust where the printhead sits with remarkable accuracy down to about 0.1 millimeters either way. When paired with those clever adaptive focus optics that change how strong the UV lamps are as needed, these setups maintain crisp details even when working with materials that are up to 5 centimeters thick. And let's not forget about warped surfaces either! The system keeps everything looking good thanks to real time adjustments made by smart algorithms. These algorithms basically figure out what needs fixing on their own so operators don't have to constantly step in and tweak things manually for consistent ink application across the whole print job.

Role of Automated Calibration in Ensuring Consistent Ink Adhesion on 5cm Materials

The automated Z axis calibration keeps the nozzle at just the right distance thanks to those tiny constant adjustments it makes all the time. There are thermal sensors built in too that watch how materials expand when they get printed on, something really important when working with stuff that reacts to heat changes, think laminated wood for instance. When we combine this mechanical accuracy with how well these machines adapt to their surroundings, what do we get? Around 99.9 percent ink sticking properly on materials that are about 5 centimeters thick. And bonus point here is that setup takes roughly 40 percent less time than older models did back in the day.

FAQ

What is the maximum material thickness UV flatbed printers can handle?

UV flatbed printers can handle materials as thick as 5 centimeters, accommodating the space necessary for ink droplets and curing processes.

How do UV flatbed printers adjust for thick substrates?

They use Z-axis elevation systems, motorized lifting systems for heavy materials, and automated height sensors for fine adjustments.

What types of materials can UV flatbed printers work with?

They can print on various materials, including wood, acrylic, metal, ceramics, and even textured acoustic panels without priming.

What are the common challenges in thick-substrate UV printing?

Challenges include surface irregularities, thermal dynamics, edge distortion, and ink penetration issues. Automated height-mapping systems help mitigate these challenges.
